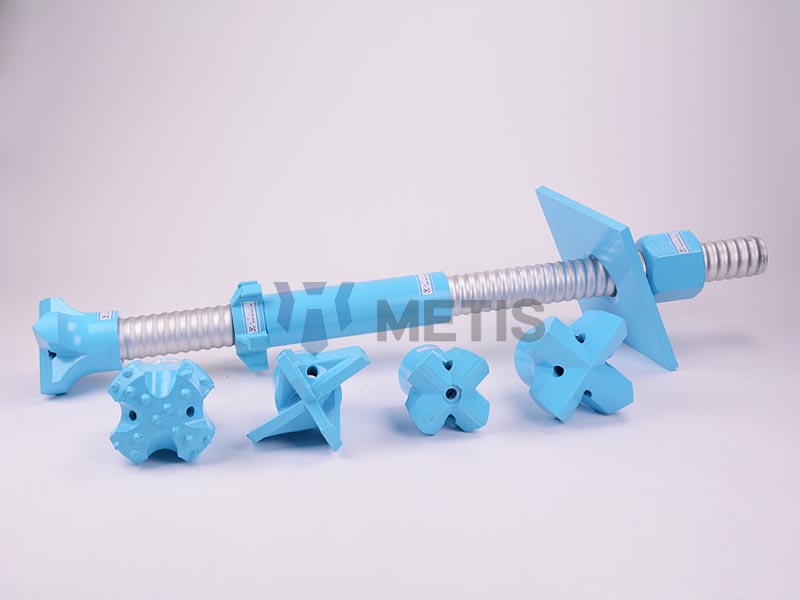

R51 Anchor Bolt
- Type:R51
- Payment Terms:L/C, T/T.
- Trading Terms:EXW, FOB, CFR, CIF.
We're here to help:
Easy ways to get the answers you need.
Introduction
• Brief Introduction
R51 anchor bolt is unique anchoring system and fulfills current and increasing demands of the tunneling industry and ground engineering for safer and faster production. The system provides advantages for all areas of its applications, where boreholes would require the time consuming drilling with casing systems in unconsolidated or cohesive soil.
• Specifications
Hollow Anchor Bar
• Features
1. Particularly suitable for difficult ground conditions.
2. A high rate of installation since drilling, placing and grouting can be performed in one single operation.
3.Self drilling system eliminates the requirement for a cased borehole.
4.Installation with simultaneous drilling and grouting possible.
•Application
• Radial bolting
• Slope stabilization
• Fore poling
• Micro injection pile
•Face stabilization
R51 anchor bolt is unique anchoring system and fulfills current and increasing demands of the tunneling industry and ground engineering for safer and faster production. The system provides advantages for all areas of its applications, where boreholes would require the time consuming drilling with casing systems in unconsolidated or cohesive soil.
• Specifications
Hollow Anchor Bar
| Sample | Size | Outer Dia. (mm) |
Inner Dia. (mm) |
Ultimate Load (KN) |
Yield Load (KN) |
Weight (Kg/m) |
Thread | ||||||||
 |
R51L/1 | 51 | 37.5 | 550 | 450 | 5.6 | ISO 10208 | ||||||||
| R51L | 51 | 36 | 550 | 450 | 7.0 | ISO 10208 | |||||||||
| R51N/1 | 51 | 34 | 800 | 630 | 7.5 | ISO 10208 | |||||||||
| R51N | 51 | 32 | 800 | 630 | 8.5 | ISO 10208 |
• Features
2. A high rate of installation since drilling, placing and grouting can be performed in one single operation.
3.Self drilling system eliminates the requirement for a cased borehole.
4.Installation with simultaneous drilling and grouting possible.
•Application
• Radial bolting
• Slope stabilization
• Fore poling
• Micro injection pile
•Face stabilization
Accessories
The accessories include the anchor coupling, anchor nut, anchor plate and centralizer. Blow are the specifications for accessories.
•Anchor Coupler
• Anchor Nut
•Anchor Coupler
| Sample | Size | Outer Dia. (mm) |
Length (mm) |
Weight (Kg) |
Thread | ||||||||||
 |
R51L | 63 | 140 | 1.32 | ISO 10208 | ||||||||||
| R51L | 63 | 170 | 1.70 | ISO 10208 | |||||||||||
| R51N | 63 | 200 | 1.90 | ISO 10208 | |||||||||||
| R51N | 63 | 220 | 2.00 | ISO 10208 | |||||||||||
• Anchor Nut
| Sample | Size | Type | Key Size (mm) |
Length (mm) |
Weight (Kg) |
||||||||||
 |
R51 | Hex Nut | 75 | 70 | 1.58 | ||||||||||
 |
R51 | Domed nut | 75 | 70 | 1.70 | ||||||||||
• Anchor Plate
| Sample | Size | Type | Dimension (mm) |
Thickness (mm) |
Hole Dia. (mm) |
Weight (Kg) |
|||||||||
 |
R51L | Flat Plate | 150*150 | 40 | 56 | 6.20 | |||||||||
| R51L | Flat Plate | 200*200 | 30 | 60 | 10.50 | ||||||||||
| R51N | Flat Plate | 180*180 | 45 | 50 | 8.72 | ||||||||||
| R51N | Flat Plate | 250*250 | 40 | 60 | 18.90 | ||||||||||
•Centralizer
| Sample | Size | Outer Dia. (mm) |
Length (mm) |
Weight (Kg) |
||||||||||||
 |
R51 | 91 | 30 | 0.32 | ||||||||||||
Drill Bit
| Sample | Type | Size | Diameter (mm) | |||||||||||||
 |
EX | R51 | ø100, ø110, ø115, ø130 | |||||||||||||
 |
EXX | R51 | ø90, ø100, ø115 | |||||||||||||
 |
ES-F | R51 | ø100, ø115 | |||||||||||||
 |
ESS-F | R51 | ø76, ø100, ø115, ø130, ø150 | |||||||||||||
 |
Clay Bit | R51 | ø115, ø130, ø150 | |||||||||||||
| |
ES-D | R51 | ø115 | |||||||||||||
 |
EC | R51 | ø115 | |||||||||||||
| XX | R51 | ø130, ø150 | ||||||||||||||
